2019 two pocket bill counter money sorter machine sorting machine cash currency counting and automatic note banknote

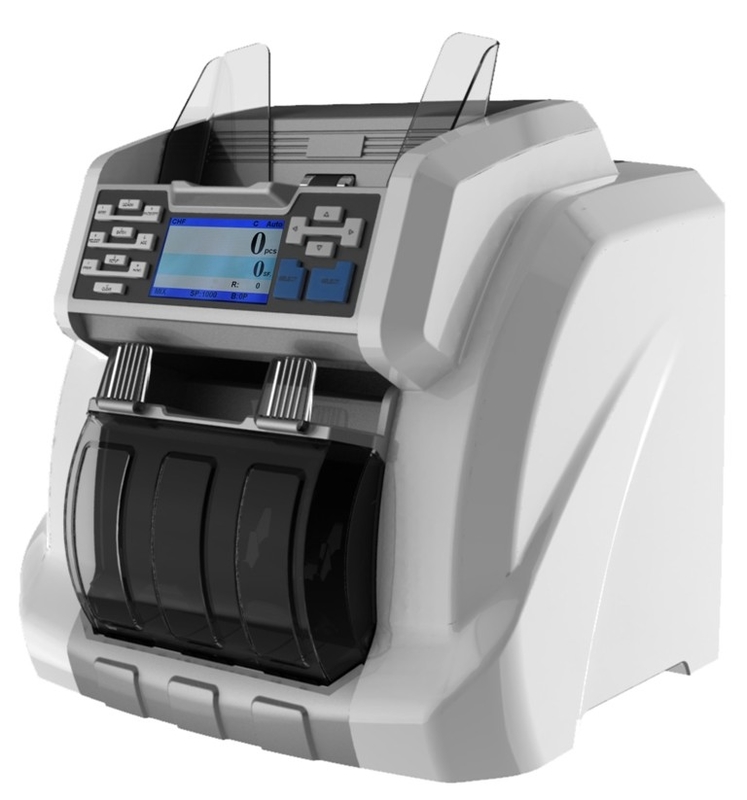

FMD-700 is the money sorter,is our latest model ,with two CIS inside ,machine can easily printing the serial number of USD , EUR, and RMB , will be helpful for the banknote safe .The software have update more than 30 countries currency , Can easily add your currency after got money to test .
Easy to maintain for software , if new version currency come only count the money reference to our manual , send back us by internet ,we developed the new software send back to update is ok.
Main Features:
- Compact size: It can be placed even on small table.
- TFT Screen: It has clearly visible 3.5 inch TFT screen.
- Multi-currencies Capability: It can be installed with 14 different currencies in one machine at most.
- Reliable Counterfeit Detection: It can detect the note by UV, MG, MT, IR, CIS and serial number.
- Serial Number Read and Print: It can read serial number from both sides, output and print the serial number.
- Easy Upgrade: It can be upgraded through USB memory stick or PC interface for the new currency and improved software.
- Banknotes Info Collection: It can support to collect the banknotes image, UV, MG, IR information through USB or LAN port,Our engineer can use those information for software development.
- Easy Jam Removal and Sensor Cleaning: It is easy to open the passage from rear side to clear jammed notes and clean the sensors.
- Dust Proof Cover: Its distinctive dust proof cover is very good for users’ health.
PARAMETER:
Hopper capacity: 500pcs
Stacker capacity: 200pcs
Rejected pocket capacity: MAX 100pcs
Display: 3.5 inch TFT screen
Suitable note size: Length: 100mm~175mm
Width: 50mm~90mm
Suitable note thickness: 0.05mm~0.12mm
Speed: 800/1000pcs/min(MIX & SDC Mode) 1200pcs/min(CNT Mode)
Batch number: 5~199pcs
Connectivity: External printer/PC port: RS232
LAN port:RJ45
External display port: RJ12
Software upgrade/Information collection port: USB/LAN
Save counted information port: Micro-SD card
Available currency software: more than 40 currencies
Operation modes: Single denomination sorting/Mix counting/Pieces counting/Face/Orientation Sorting
Counterfeit detection: Ultraviolet detection(UV), Magnetism detection(MG), Metal thread detection(MT),Infrared image detection(IR)
Power supply: AC 220V 50Hz ±10% AC 110V 60Hz ±10%
Power consumption: Sleeping mode ≦15W, Operation mode≦70W
