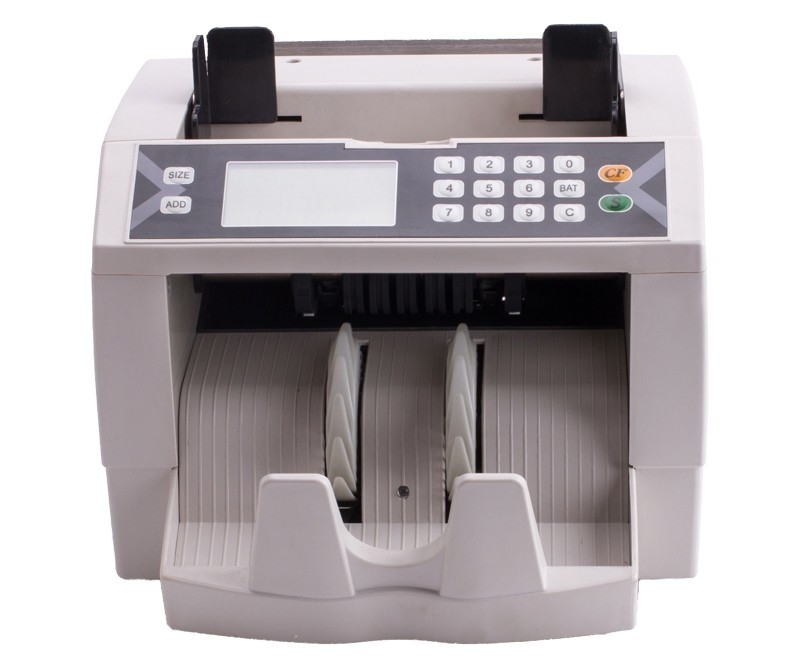

Money counter,Top loading machine, multi currency counters, USD/EURO bill counter

Model

MG

UV

IR

Size

ADD

Batch

Half note

Chain note

FMD-301 CO

√

√

√

√

√

√

FMD-301 UV

√

√

√

√

√

√

√

FMD-301 UV/MG

√

√

√

√

√

√

√

√

ITEM

Explain

Counterfeit Detecting Function

UV: fluorescent detection.
MG: magnetic detection.
IR:  Double note detection
Size: check the smaller not in width (3mm difference)
Half note detection
Chain note detection

Auto start counting mode

Put banknotes on hopper and then machine will began counting automatically.

Manual start counting mode

Put banknotes on hopper, and only after pressing the RESTART button can the machine begin to work.

Addition function

Under this mode the new counted quantity will be added to the previous counted quantity.

Batch function

Preset the counting number you need, machine will be stop when the preset counting number is reached. And machine will work again when the banknotes are taken off.

Voice

English

Seven color background

Different error code with different color for background

Customer display

Included

Note: Hold “ADD” button with 5s, then for Adjust model, and Press” ADD” button for select different code.

Axx

UV sensitivity, Range(1-9), Max (A09)

bxx

MG sensitivity, Range (1-9),Max (b09)

Cxx

Chain note sensitivity, Range (1-9), Max (C09)

dxx

Size sensitivity, Range (1-9),Max(d09)

Exx

Double sensitivity, Range (1-9),Max(E09)

Fxx

Half note,  F00: close half note, F01: Open half-note

Uxx

“U00” for not including the suspiious notes, “U01” for including the suspicious notes.

Pxx

“P00” for Manual start counting mode, “P01” for Auto start counting mode

BAx

“BA0” for light background, “BA1” for deep background

sdx

“Sd1” for open voice, “sd0” for close voice

Note: must confirm it with “S” button, after adjust the function.
